Storm sewer and drainage

Storm mains, inlets, manholes and detention set to the plan invert, with subdrain and downspout collection tied in so the site actually drains the way it was designed to.

Request a bid Direct line260.600.3711

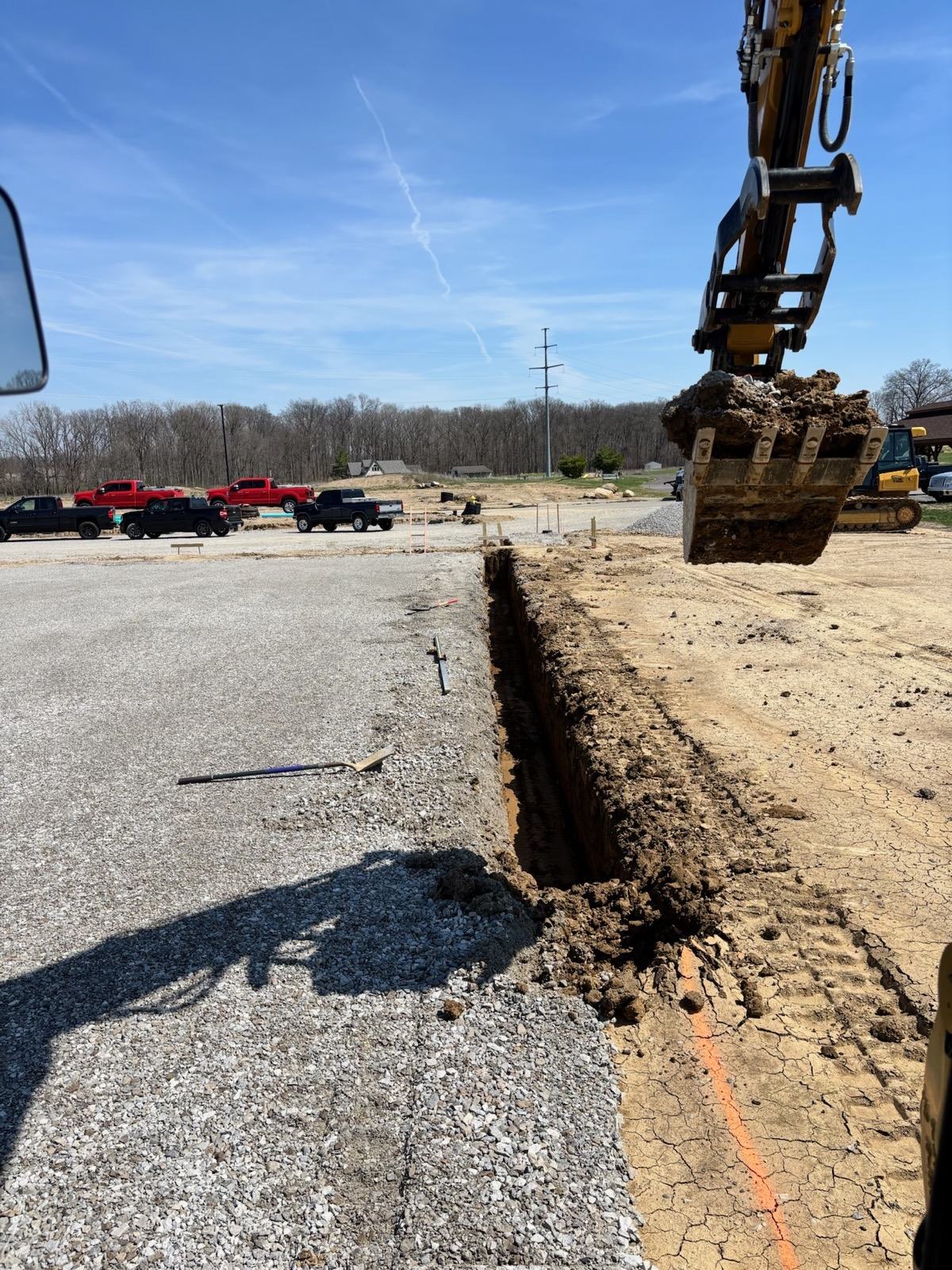

BDX storm sewer trench cut across an existing drive on a commercial site

Scope included

What this scope covers.

Storm mains and laterals
Inlets, catch basins and manholes
Detention and retention systems
Subdrain and underdrain
Downspout collection drains
Rip-rap, outlet protection and swale shaping

Invert control: Structures set to plan rim and invert, checked before backfill
Subdrain: Perforated pipe in washed stone with filter fabric per the detail
Detention: Chamber or pipe systems installed to the manufacturer's bedding requirement
Erosion control: Inlet protection maintained through construction

• Field standard

The invert is the
whole job.

Storm work either drains or it does not, and the difference is a matter of inches at the structure. Rims and inverts are checked against the plan before anything is backfilled.

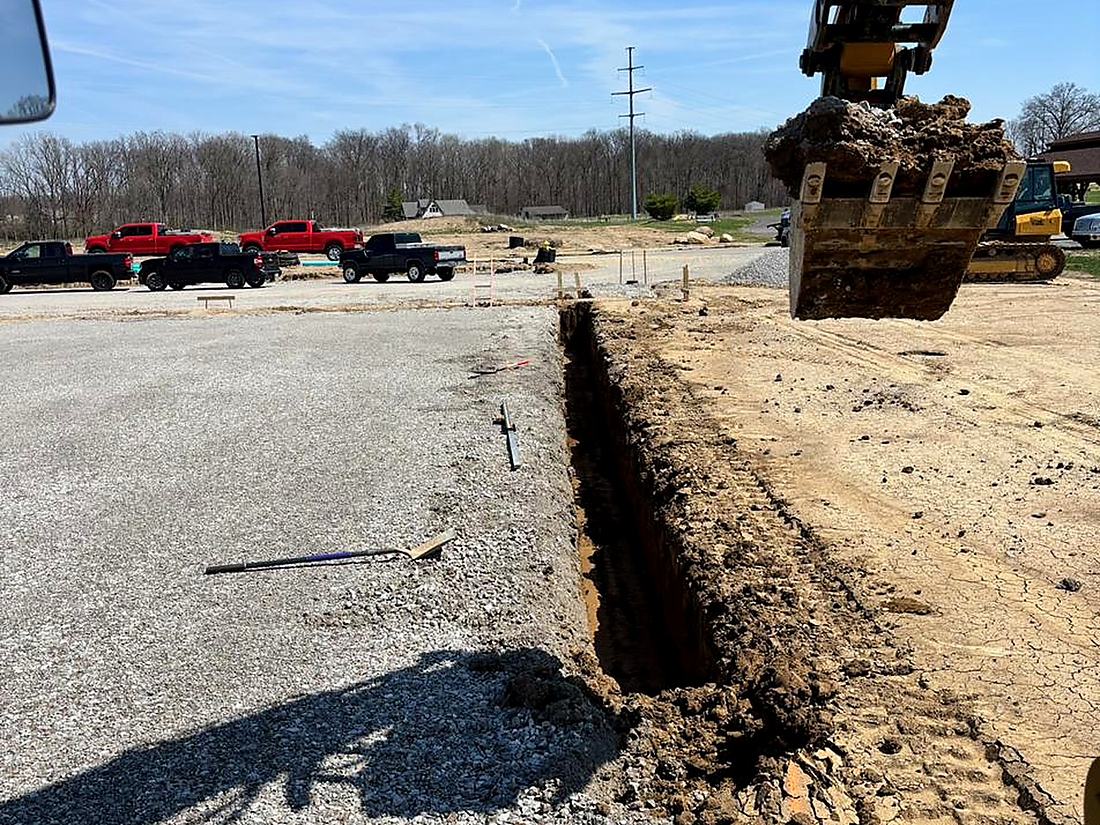

Clean storm trench cut across compacted stone on a BDX commercial site — Div 33 · DrainageNortheast Indiana

Questions

Storm sewer and drainage — FAQ

Do you install detention chamber systems?

Yes. Chamber and pipe detention systems are installed to the manufacturer's bedding and backfill requirement, which usually governs over the general trench detail.

Is inlet protection included?

Erosion control shown on the plan is carried in the base bid, including inlet protection and its maintenance during construction. Quantities beyond what the plan draws are billed as added work.

Can you tie in roof drains from the building?

Yes. Downspout collection drains are installed from the stub-out location the architectural or plumbing sheet shows to the storm structure on the civil set.
