Div 33 · Water
Water and fire main
Domestic water and fire service run from the tap to the building stub, restrained and thrust-blocked where the detail requires, then pressure tested and disinfected.
Scope included
What this scope covers.
- Domestic water service
- Fire line stub to the building

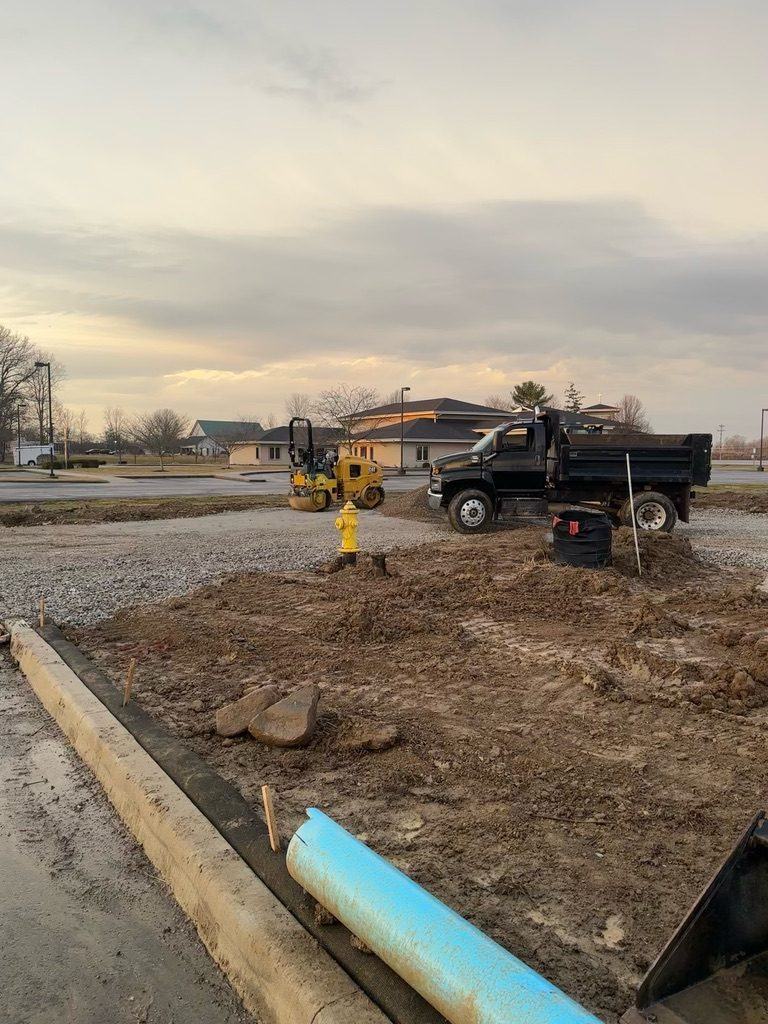

- Hydrant assemblies and valves
- Thrust blocking and joint restraint
- Pressure testing and disinfection
- Tracer wire and valve box setting
- Materials

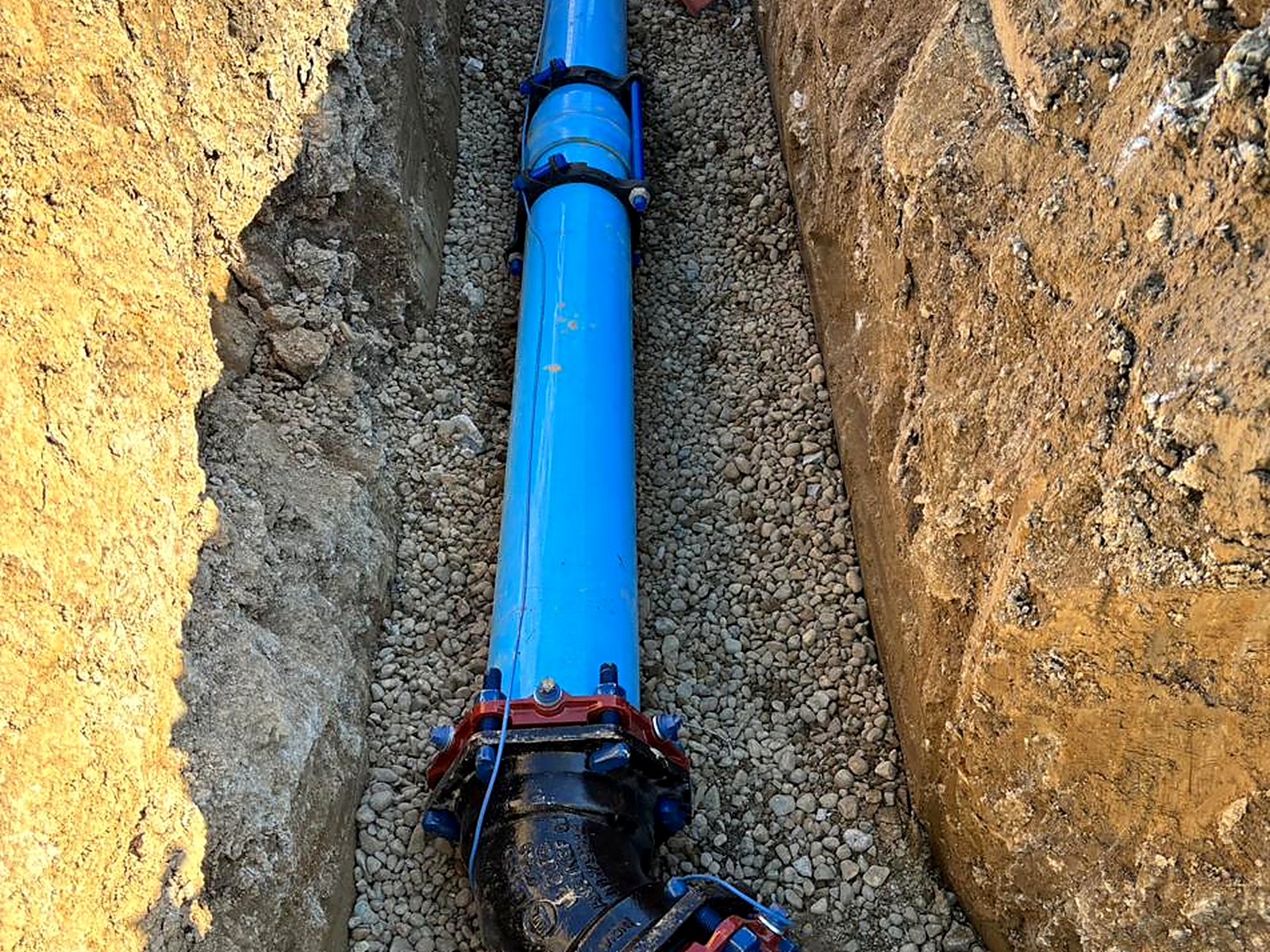

- Ductile iron or PVC to the specified class, with restrained joints where the detail calls for them
- Restraint
- Thrust blocks and mechanical restraint at bends, tees and hydrants
- Testing
- Pressure test, chlorination and bacteriological clearance coordinated with the utility
- Boundary
- Service and fire line to the building stub; PIV and interior valves by the mechanical contractor
• Field standard
Restrained, tested,
and cleared.
Water work is not finished when the pipe is in the ground. It is finished when it holds pressure, passes a bacteriological sample and the utility signs off. That sequence is in the schedule from the start.
Questions
Water and fire main — FAQ
Do you set the PIV or the backflow assembly?
No. BD Excavation runs the fire line to the building stub. The post indicator valve, backflow preventer and everything inside the building line are the plumbing or mechanical contractor's scope, and the proposal says so.
Who coordinates the tap at the city main?
BD Excavation coordinates with the utility having jurisdiction on scheduling and inspection. Municipal tap fees and permit fees are paid by the Owner unless the bid documents assign them otherwise.
Is pressure testing and chlorination included?
Yes, pressure testing and disinfection are carried with the water scope. Laboratory analysis is a subcontracted service and is identified separately.
